DESCRIPTION

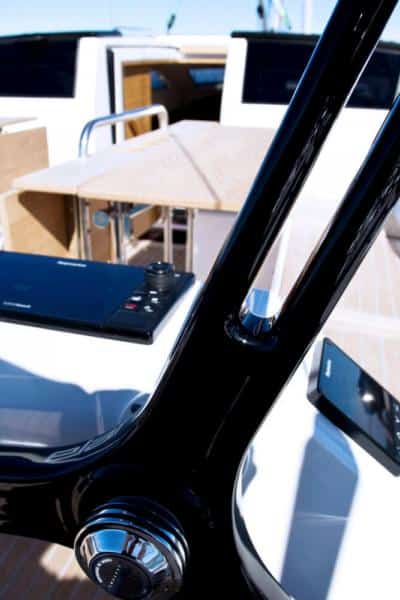

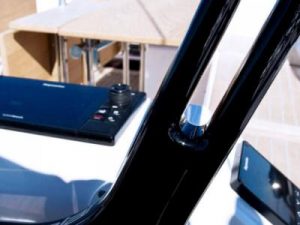

The GT5 cockpit, which features a refrigerator, a barbecue, and other popular facilities on larger yachts, is designed to enjoy time with family and friends, offering ample seating area and a range of imaginative cockpit table choices turn the seating into a sunbathing lounge.

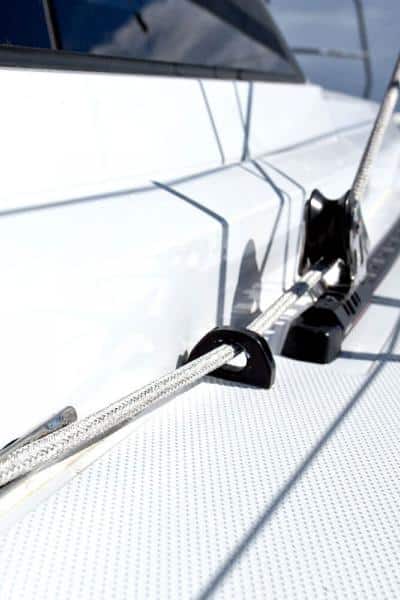

Clean deck design ensures a secure and straightforward way forward and makes plenty of sunbathing areas with dedicated cushions on the foredeck.
INTERIOR

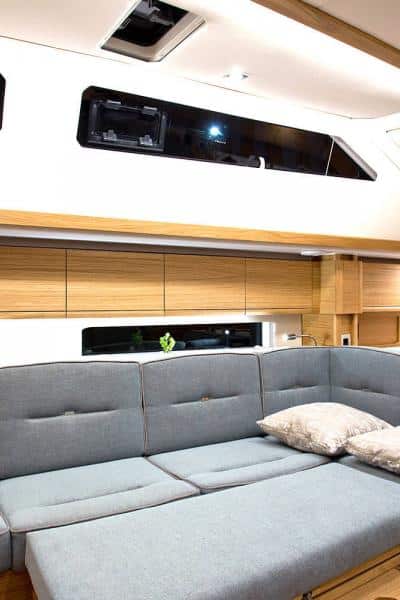

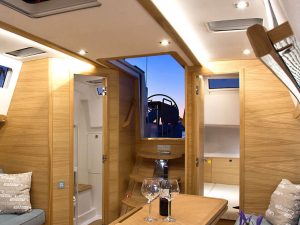

The room below the deck is unique in its class. The Elan Design Team has introduced an inverted saloon configuration with a forward galley, ensuring maximum utilization of the yacht volume for the most comfortable and revolutionary saloon in its range of sizes. The front galley provides adequate storage space with a personalized corner to be uniquely fitted for each owner. The 180-degree panoramic skylight with a window in the window, two hatches, and a wide central hatch allows the saloon to be ventilated at all times. The new GT5 is also the first yacht of this size to offer a separate shower compartment with a 3-cabin, 2-head interior configuration.
SPECIFICATION
| Length Overall | 13,20 m | 43’4’’ ft |
| Hull length | 12,41 m | 40’9’’ ft |
| Length at waterline | 11,58 m | 38’0’’ ft |
| Beam | 3,91 m | 12’10’’ ft |
| Draft (standard) | 2,45 m | 8’0’’ ft |
| Draft (option) | 2,25 m | 7’4’’ ft / 2,45 m | 8’0’’ ft / 1,95 m | 6’5’’ ft |
| Light displacement | 8.650 kg | 19,070 lbs |
| Ballast | 2.655 kg | 5,855 lbs |
| Water capacity (standard) | 220 l | 58 US gal |
| Water capacity (option) | 490 l | 129 US gal |
| Fuel capacity | 146 l | 39 US gal |
| Engine (standard) | 37.0 kW | 50 HP Volvo Penta |
| Engine (option) | 42.5 kW | 57 HP Yanmar |
| Air draft | 18,39 m | 60’4’’ ft |
| Mainsail | 44,60 m2 | 480’1’’ sq ft |
| Jib | 34,20 m2 | 368’10’’ sq ft |
| Asymetric | 135 m2 | 1453’1’’ sq ft |
| I | 15,25 m | 50’0’’ ft |
| J | 4,275 m | 14’0’’ ft |
| P | 14,85 m | 48’9’’ ft |
| E | 5,3 m | 17’5’’ ft |
