DESCRIPTION

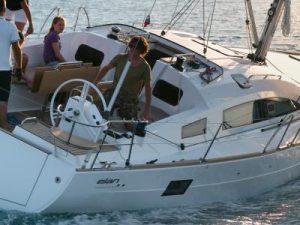

Inspired by the solutions shown on the Elan GT5, the Elan Impression 45.1 now has a longer and wider cockpit, characterized by twin wheels, a split cockpit table, and a folding sunbed. With a new vertical transom, two wide cockpit storage boxes have been added, which can also be fitted with a grill, sink, or refrigerator. Customers can now go for a sportier look with an open transom configuration or prefer a closed transom’s safety and convenience with a wide swimming platform. One of the additional improvements instantly evident is installing a new window, lighting the back cabins, and building its immediately identifiable form.
INTERIOR

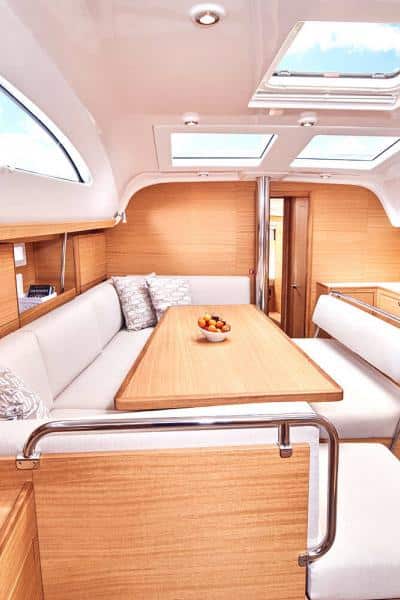

This model 45.1 is bright and airy thanks to its hull shape and its identifiable deck windows. The saloon features a large settee that surrounds the table without obstructing the road. The Gallery has been pushed forward to a more spacious living area and a wider navigation area. After months of testing, Iroko veneer framed in solid Iroko wood was chosen as the critical interior furniture material. It was decided to have the best endurance capabilities and a stunning classic look. The Elan Impression 45.1 will be available in two cabin layouts, one more suited to friends and family’s needs and one for challenging charter classes.
SPECIFICATION
| Length Overall | 13.85 m | 45’5’’ ft |
| Hull length | 13.00 m | 42’8’’ ft |
| Length at waterline | 11.44 m | 37’6’’ ft |
| Beam | 4.18 m | 13’9’’ ft |
| Draft | 1.90 m | 6’3’’ ft, (opt1. 1.60m | 5’3’’ ft) |
| Light displacement (mLCC) | 10.420 kg | 23.0 lbs |
| Air Draft (incl. antenna) | 19.50 m | 63’12’’ ft |
| Ballast | 3.310 kg | 7.3 lbs or 3.450 kg | 7.6 lbs |
| Water capacity (standard) | 300 liters | 79,3 US gal |
| Water capacity (option) | 572 liters | 151,1 US gal |
| Fuel capacity | 215 liters | 56 US gal |
| Engine Volvo (standard) | 37 kW | 50 HP |
| Engine Yanmar (option) | 42 kW | 57 HP |
| Engine Volvo (option) | 55 kW | 75 HP |
| Mainsail | 46.79 m2 | 503’6’’ sq ft |
| Furling | 39.75 m2 | 427’9’’ sq ft |
| Genoa | 52.47 m2 | 564’7’’ sq ft |
| Gennaker | 135.45 m2 | 1458’0’’ sq ft |
| I | 15.90 m | 52’2’’ ft |
| J | 4.78 m | 15’8’’ ft |
| P | 14.80 m | 48’7’’ ft |
| E | 5,37 m |17’7’’ ft |
